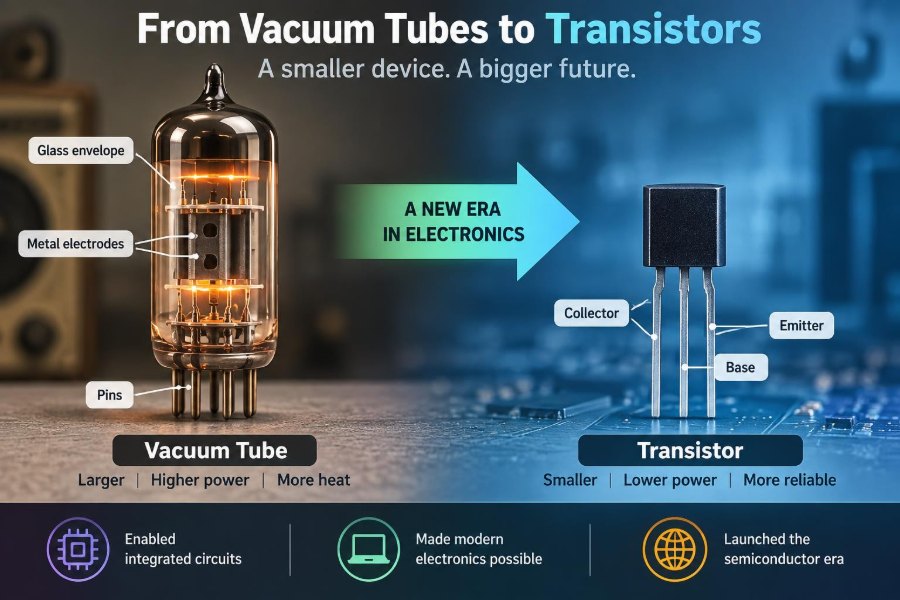

A pocket calculator, a phone, a car’s engine controller, and a satellite navigation receiver all depend on the same basic ability: controlling electrical current with a tiny signal. It is so ordinary now that it is easy to miss how extraordinary the change was.
Before the transistor, electronic systems relied heavily on vacuum tubes—glass devices that controlled electrons in an evacuated space. They made radio broadcasting, radar, long-distance telephony, and early digital computers possible, but they also made equipment large, hot, power-hungry, and prone to failure.
The transistor did not merely make old circuits smaller. It changed what engineers could build, where electronics could operate, and who could afford to use it. Its descendants now number in the billions inside a single modern integrated circuit.
Understanding this transition is useful because it connects device physics to everyday engineering decisions: power, reliability, switching speed, manufacturing, and system scale all begin at the component level.
🔦 Electronics Before the Transistor
Early electronic engineering was built around components such as resistors, capacitors, inductors, relays, and vacuum tubes. A relay could switch a circuit, but its moving contacts limited speed and wore mechanically. Vacuum tubes offered a much faster way to control current.
By the 1930s and 1940s, tubes were central to radio receivers, television systems, radar installations, audio amplifiers, and the first electronic computers. They were enabling technology, not a historical mistake. The problem was that their strengths came with costly physical constraints.
🧪 What a Vacuum Tube Actually Does
A vacuum tube is an electronic device enclosed in a glass or metal envelope from which most gas has been removed. A heated cathode emits electrons through a process called thermionic emission.
A positively charged anode, often called a plate, attracts those electrons. Between cathode and anode sits a control grid. A small change in grid voltage changes how many electrons reach the plate, allowing a small signal to control a larger current.
That is the essential action of amplification. The tube does not create signal information; it uses energy from its power supply to reproduce the input variation at a larger power level.
🔥 Why Tubes Needed So Much Power
Most common vacuum tubes needed a heater or filament to raise the cathode to an electron-emitting temperature. Even before a circuit processed useful information, it consumed power simply to keep the tube ready.
That heat also shaped the rest of the design. Equipment needed ventilation, transformers sized for filament supplies, heat-tolerant construction, and time to warm up after switching on. A portable radio could use tubes, but portability came with serious compromises in battery life and size.
📦 The Size Problem in Real Systems
A single tube is not necessarily enormous, but an electronic system needs supporting parts: sockets, wiring, transformers, cooling space, and safe clearances for high voltages. Those requirements multiply quickly when a design uses hundreds or thousands of active devices.
ENIAC, one of the earliest large electronic general-purpose computers, used thousands of vacuum tubes. It demonstrated electronic computation at unprecedented speed, but its scale also illustrated the maintenance challenge created by large tube populations.
🛠️ Reliability and the Weak-Link Effect
Vacuum tubes can operate reliably, especially in well-designed equipment, but their heated filaments eventually fail and their characteristics can drift. Glass envelopes can also be damaged, and connections can become unreliable through heat cycling and vibration.
In a system with many components, even a modest individual failure rate becomes significant. If any one critical device can stop a machine, adding more devices can reduce the expected time between failures. This is often called the weak-link effect in series-dependent systems.
📻 Tubes Were Still Excellent at Some Jobs
The transistor did not instantly make every tube obsolete. Tubes handled high voltages, high radio-frequency power, and severe overloads effectively in many applications. Their behavior could also be forgiving in certain analog circuits.
Even now, specialized vacuum devices remain useful in areas such as some high-power radio transmitters, microwave systems, X-ray equipment, and scientific instruments. Replacement was driven by application needs, not by a rule that newer devices are always better.
🧠 The Semiconductor Clue
Researchers knew that some solid materials behaved differently from ordinary conductors and insulators. Materials such as germanium and silicon could conduct under certain conditions, and their behavior changed when impurities or electrical contacts were introduced.
These materials are semiconductors. Their electrical conductivity lies between that of a good conductor, such as copper, and a strong insulator, such as glass. More importantly, engineers can deliberately control their conductivity.
⚛️ Energy Bands Without the Mystery
In a solid, electrons occupy allowed energy ranges called bands. In a semiconductor, the gap between the filled valence band and the conducting band is small enough that heat, light, or an electric field can move some electrons into states where they conduct.
You do not need quantum mechanics calculations to use a transistor, but the band model explains why material purity and crystal structure matter so much. A small number of unwanted atoms can change device behavior substantially.
➕ Doping Creates Useful Material Regions
Pure silicon is not usually the final material used in a transistor. Manufacturers add carefully controlled quantities of other elements, a process called doping. The dopant changes the balance of mobile charge carriers.
- N-type material has extra mobile electrons as its majority carriers.
- P-type material has mobile holes as its majority carriers. A hole is a useful model for a missing electron that behaves as a positive charge carrier.
The amount and location of doping allow engineers to form junctions and create devices with predictable electrical behavior.
🚧 The P–N Junction as a One-Way Boundary
When P-type and N-type semiconductor meet, carriers diffuse across the boundary and leave behind charged atoms. This produces a region depleted of mobile carriers, called the depletion region.
Applying voltage in one direction narrows this barrier and permits substantial current flow. Applying voltage in the reverse direction widens it and strongly limits current until breakdown conditions are reached. This behavior creates the semiconductor diode.
🔬 Bell Labs and the First Transistor
At Bell Telephone Laboratories, John Bardeen, Walter Brattain, and William Shockley made foundational advances that led to the transistor. In December 1947, Bardeen and Brattain demonstrated the first working point-contact transistor.
The device used germanium and closely spaced contacts to obtain amplification. It was delicate and not yet ideal for mass production, but it proved that a solid-state device could control and amplify electrical signals without a heated vacuum envelope.
📌 From Point Contacts to Junction Transistors
The point-contact transistor was followed by the bipolar junction transistor, or BJT, whose structure was better suited to repeatable manufacturing. A BJT contains three semiconductor regions arranged as either NPN or PNP.
Its terminals are the emitter, base, and collector. A small base current, or more precisely the carrier injection associated with base-emitter operation, controls a much larger collector current. That made the BJT a practical successor to the amplifying tube.
🚰 The Transistor as a Controlled Valve
The valve analogy is useful if used carefully. Imagine a small handle controlling a larger water flow: a modest input influences a larger output. In a BJT, a small control current affects a larger current path.
But electrons are not water, and no physical gate slides open inside a transistor. The actual mechanism involves electric fields, carrier movement, and junction bias. The analogy helps with circuit function; device physics supplies the accurate explanation.
🔊 Amplification: The First Familiar Use
In an audio amplifier, a microphone produces a small changing voltage. A properly biased transistor uses energy from a power supply to produce a larger version of that changing signal, capable of driving later stages or a loudspeaker.
Biasing matters because the transistor must operate in a suitable region of its characteristic curves. Without a stable operating point, the output may clip, distort, or shift as temperature changes. Replacing a tube with a transistor required circuit redesign, not merely swapping components.
⚡ Switching Changed Digital Design
A transistor can also act as an electronic switch. In one state it blocks current strongly; in another it allows current to flow. Switching made it possible to represent binary states without relay contacts moving back and forth.
Digital logic uses transistors to implement gates, storage cells, timing circuits, and arithmetic operations. A single transistor is simple, but organized networks of them can perform the logical functions of a computer.
🧱 Why Solid-State Devices Shrunk Equipment
Transistors needed no evacuated glass bulb, no cathode heater, and no tube socket. Their smaller size reduced wiring length and made compact assemblies practical. Shorter connections also reduced unwanted capacitance and inductance in many circuits.
Miniaturization was therefore more than cosmetic. Smaller electronics could be placed in hearing aids, portable radios, aircraft systems, instruments, and eventually handheld computing devices.
🔋 Battery Life Became a Design Advantage
Eliminating the heater was a major energy saving. Transistor circuits could often run from low-voltage batteries, whereas tube systems commonly needed both filament power and higher plate voltages.
Lower power consumption enabled devices that could remain on for longer periods. It also reduced internal heating, which improved comfort and reliability in tightly packed consumer products. The exact benefit depended on the circuit, frequency, output power, and transistor type.
🌡️ Heat Did Not Disappear
A common misconception is that transistors are cold components. They are not. Every real transistor dissipates power when it carries current or switches, and high-power devices may require heat sinks, fans, thermal pads, or liquid cooling.
The difference is that transistors generally avoid continuous heater power and can be designed with much lower energy use per function. Thermal management remains essential, especially in power electronics, processors, and radio-frequency amplifiers.
🏭 Manufacturing Became Part of Circuit Design
Vacuum tubes were assembled devices, while semiconductor devices opened the path to fabricating many structures on a wafer. This made manufacturing precision central to electronics performance.
Cleanliness, crystal quality, photolithography, diffusion, implantation, metallization, and packaging all affect the final device. Modern electronics engineers therefore work at the intersection of circuit theory, material science, manufacturing, and testing.
🧩 The Integrated Circuit Multiplied the Impact
Discrete transistors reduced size, but interconnecting thousands of separate components by hand still imposed limits. The integrated circuit placed transistors, resistors, and other structures on a shared semiconductor substrate.
This reduced interconnection length, assembly effort, and opportunities for wiring errors. It also made complex functions reproducible at a scale impossible with individually wired devices. The transistor was the key active element; the integrated circuit made vast transistor counts economically useful.
🖥️ MOSFETs Became the Scaling Device
The metal-oxide-semiconductor field-effect transistor, usually called a MOSFET, controls current with an electric field at its gate. Ideally, very little steady gate current is needed because the gate is insulated from the channel.
MOSFETs became especially suitable for dense integrated circuits. Complementary MOS, or CMOS, pairs N-channel and P-channel MOSFETs so that, in many steady logic states, very little direct current flows. This greatly supported low-power digital systems.
📊 Tube, BJT, and MOSFET at a Glance
| Feature | Vacuum tube | BJT | MOSFET |
|---|---|---|---|
| Control method | Grid voltage controls electron flow in vacuum | Base-emitter action controls collector current | Gate electric field controls channel current |
| Heater required | Usually yes | No | No |
| Input requirement | Very low grid current in many cases | Requires base current in normal operation | Very low steady gate current |
| Typical modern strength | Specialized high-power or niche use | Analog gain and robust discrete applications | Dense digital ICs and efficient switching |
This table summarizes broad tendencies, not absolute rules. Device selection depends on voltage, current, frequency, noise, linearity, cost, thermal conditions, and the requirements of the complete system.
📡 Radios Show the Transition Clearly
Early transistor radios were among the public’s first encounters with solid-state electronics. They were smaller, more portable, and ready to operate without waiting for tubes to warm up.
However, early transistor radios did not automatically sound better than every tube radio. Audio quality depended on speaker size, enclosure design, circuit topology, and component quality. Their significance was practical: radio could travel in a pocket or bag with manageable battery use.
🚀 Space, Defense, and Harsh Environments
Smaller and lighter electronics mattered in aircraft, missiles, satellites, and field communications. Reducing mass and power demand can improve the viability of an entire system, not just one circuit board.
Yet semiconductors have vulnerabilities of their own. Radiation can alter device behavior, extreme temperatures affect parameters, and electrostatic discharge can damage sensitive inputs. Engineers use shielding, derating, redundancy, screening, and specialized processes where conditions demand them.
🧰 What “Solid State” Means
The phrase solid-state electronics refers to devices in which electrical behavior is controlled inside solid materials rather than through electron flow in a vacuum or gas. Transistors, diodes, integrated circuits, and many sensors belong to this broad category.
The term does not mean that a device has no moving parts at the product level. A solid-state drive, for example, uses semiconductor memory, while the computer containing it may still have fans, switches, and connectors.
📐 Circuit Designers Had to Learn New Constraints
Transistor circuits brought benefits but also new sensitivities. BJT parameters vary between parts and with temperature, so bias stabilization became an important design skill. MOSFET gates can be vulnerable to electrostatic discharge, requiring careful handling and protection structures.
Engineers also learned to manage parasitic capacitance, leakage currents, switching losses, noise, and package thermal resistance. A replacement technology is rarely a free upgrade; it changes which errors are most likely and which design rules matter.
⚠️ Common Misunderstandings About the Revolution
- “The transistor immediately replaced every tube.” The transition took time and some tube applications remain specialized but relevant.
- “A transistor is always a switch.” It can be used for switching, amplification, oscillation, regulation, sensing, and signal processing.
- “Smaller means simpler.” A transistor is physically small, but semiconductor fabrication and modern chip design are deeply complex.
- “More transistors automatically mean better products.” Architecture, software, power delivery, cooling, verification, and reliability determine whether complexity produces useful performance.
🧑🏫 A Practical Way to Study Transistors
Students learn faster when they connect equations to measurements. Start with a low-voltage transistor circuit, measure node voltages, and compare results with a datasheet and a simple model. A common-emitter BJT amplifier or a MOSFET-controlled LED load makes cause and effect visible.
Use a current-limited supply, verify component pinouts, and discharge capacitors before changing connections. For MOSFETs, avoid touching unprotected gate pins unnecessarily; static electricity can damage some devices without leaving visible evidence.
🔍 Datasheets Turn Device Physics into Decisions
A datasheet translates a transistor’s behavior into design limits and typical characteristics. For a BJT, look at maximum collector current, collector-emitter voltage, power dissipation, gain range, and thermal data. For a MOSFET, inspect drain-source voltage, continuous and pulsed current ratings, gate threshold conditions, on-resistance, and switching characteristics.
Do not treat a maximum rating as a normal operating target. Good design includes margin for supply variation, temperature rise, switching transients, manufacturing variation, and fault conditions.
🔌 The Transistor’s Economic Effect
Mass-producible solid-state devices helped move electronics from room-sized and institution-owned equipment toward personal and embedded products. Falling device size and power requirements allowed electronic control to spread into appliances, industrial machinery, vehicles, medical instruments, and communications infrastructure.
This was not caused by the transistor alone. Advances in materials, manufacturing, software, standards, power systems, and global supply chains were also necessary. But the transistor provided the controllable, scalable active device on which those systems were built.
🌍 From Components to a Connected Society
Modern networks depend on transistors at every layer: radios encode and receive signals, routers process packets, servers store data, and phones combine sensing, computing, display control, and power management. Even the electrical grid increasingly uses semiconductor power converters to connect renewable generation and control motor drives.
The social effect follows the engineering effect. When information processing becomes smaller and cheaper, it can be distributed almost everywhere. That creates opportunity, but also raises concerns about energy demand, repairability, electronic waste, and unequal access.
♻️ The Cost of Ubiquitous Electronics
The semiconductor era has not removed environmental responsibility. Fabrication requires highly controlled processes and resources, while discarded electronics can contain valuable materials alongside substances that need responsible handling.
Engineers can influence outcomes through long-life design, repairable assemblies, efficient power conversion, sensible standby power, reusable modules, and material choices. A successful electronic product should be judged not only by what it can do on launch day, but also by its lifetime impact.
🧭 The Core Lesson of the Semiconductor Era
The transistor replaced vacuum tubes in many applications because it solved a system-level problem: it offered controllable amplification and switching in a smaller, cooler, lower-power, more manufacturable form. Those properties made circuits more reliable and made large-scale integration possible.
Vacuum tubes taught engineers how to build electronic systems. Semiconductor devices made it practical to put those systems into everyday objects, then into integrated circuits containing extraordinary numbers of active components. The central engineering principle is simple: a better building block can transform the architecture of everything built from it.
The transistor started the semiconductor era not by making electronics merely smaller, but by making complex electronic function scalable. From a 1947 laboratory demonstration to the chips around us, that shift remains one of engineering’s most consequential transitions. 🔌⚛️💡
